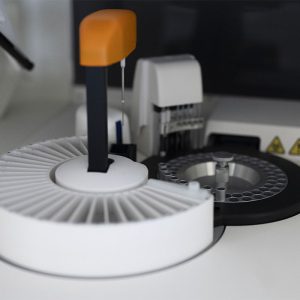

ChemiLab 200

Mode Continuous loading, random access, STAT function Throughput 200 tests/hour for single reagent tests 125 test/hour for two-reagents tests Types of analysis Endpoint, Bichromatic endpoint, Differential endpoint sample blank, Fixed time, Kinetic, Kinetic bichromatic Samples 60 positions removable sample tray Sample volume: 2 – 300 μL Reagents 30 positions removable reagent tray Refrigeration up to 12°C below room temperature Reagent volume: 5 – 350 μL Reaction cuvettes 80 reusable Bionex® cuvettes Reaction volume: 210 – 350 μL Optical system 1 halogen lamp with extended UV emission 8 interference filters at 340, 405, 505, 546, 578, 600, 650, 700 nm) Photometric range: 0 – 3 Abs Linearity: +/- 0,5% from 0,1 to 1,5 Abs

With a throughput up to 200 tests hour it is the ideal solution for small to medium size clinical laboratories. Wide range of validated pre-barcoded clinical chemistry and plasma and urinary proteins reagents available. 30 refrigerated positions for reagents with removable tray. 60 sample positions. Continuous loading of samples. Automatic and programmable start-up of the system. Intuitive and informative user interface allow the continuous monitoring of the system’s operations. Long walk-away capability.
